Product Details
＋

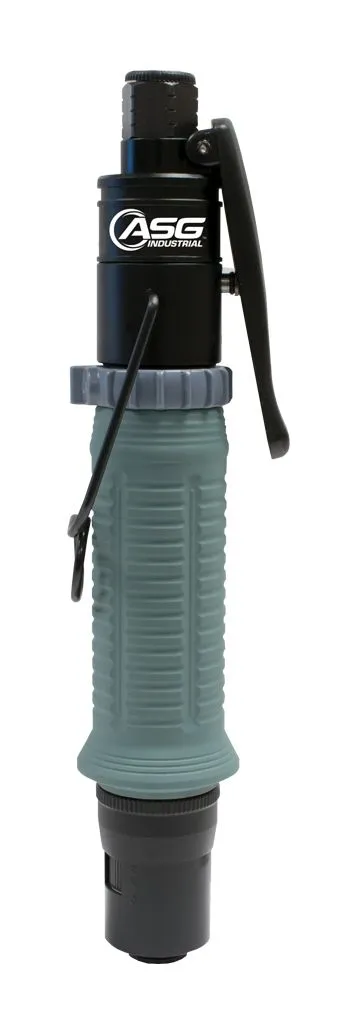

ASG H Series pneumatic screwdrivers offer a unique ergonomic thermoplastic design for comfort and gripping power. Fully reversible screwdrivers deliver full torque for tightening operations as well as fastener removal.
- Lightweight, ergonomic composite housing
- Anti-tamper torque cover included as standard
- Image may vary slightly from the actual product
Specifications
- Model No.: HL20
- Operation: Lever Start
- Body Style: In-line
- Clutch Type: Auto Shut Off
- Torque: 0.1 to 0.63 N·m (0.9 to 5.6 lbf·in)
- Free Speed: 1000 rpm
- Drive Type: 1/4" Hex
- Air Inlet: 1/4" NPT
- Min. Hose I.D.: 3/16" (5 mm)
- Air Consumption: 7 cfm (3.3 I/sec)
- Operating Pressure: 90 PSI (6.2 bar)
- Noise Level ±2dBA: 70
- Length: 8.3" (210 mm)
- Weight: 1.14 lb. (0.52 kg)
- Warranty: 1 Year
